The new 24-meter Zattera that is currently under construction at Castagnola Yacht in Lavagna, Italy began with an idea from Renzo Piano and Olav Selvaag. Nauta Design and Francesco Rogantin gave shape to that idea and Siemens Energy created its propulsion system in collaboration with the architects Adi Nataf and Jürgen Reinhold, MÜLLER BBM.


Inspired by the dream of being able to live life at sea in spiritual silence and in harmony with the natural environment, Zattera, which in Italian means raft, is more a means for enjoying life at sea than a proper yacht. Built in sustainable yet durable wood, its design is pared down and modern with clean and simple hull lines.

The design features a raft-like low freeboard and wide beam. The hull’s lines are emphasized by a light and transparent glass superstructure that almost seems to float and that allows for direct, unhindered visual contact between man and nature.

Fundamental aspects of the project were increasing serenity to the maximum and reducing noise pollution to a minimum. A vessel that by philosophical choice is made for enjoying the natural soundscape of the sea, moving slowly in Nature and living immersed in peaceful anchorages has to move silently and with reduced fuel consumption. The idea behind Zattera is following the sound of the sea, sailing slowly. Zattera is relatively lightweight with a displacement hull that can navigate at up to 12 knots with a 10.5 knot cruising speed. CFD testing allowed for an optimized bow shape with good sternwards flow and reduced resistance.

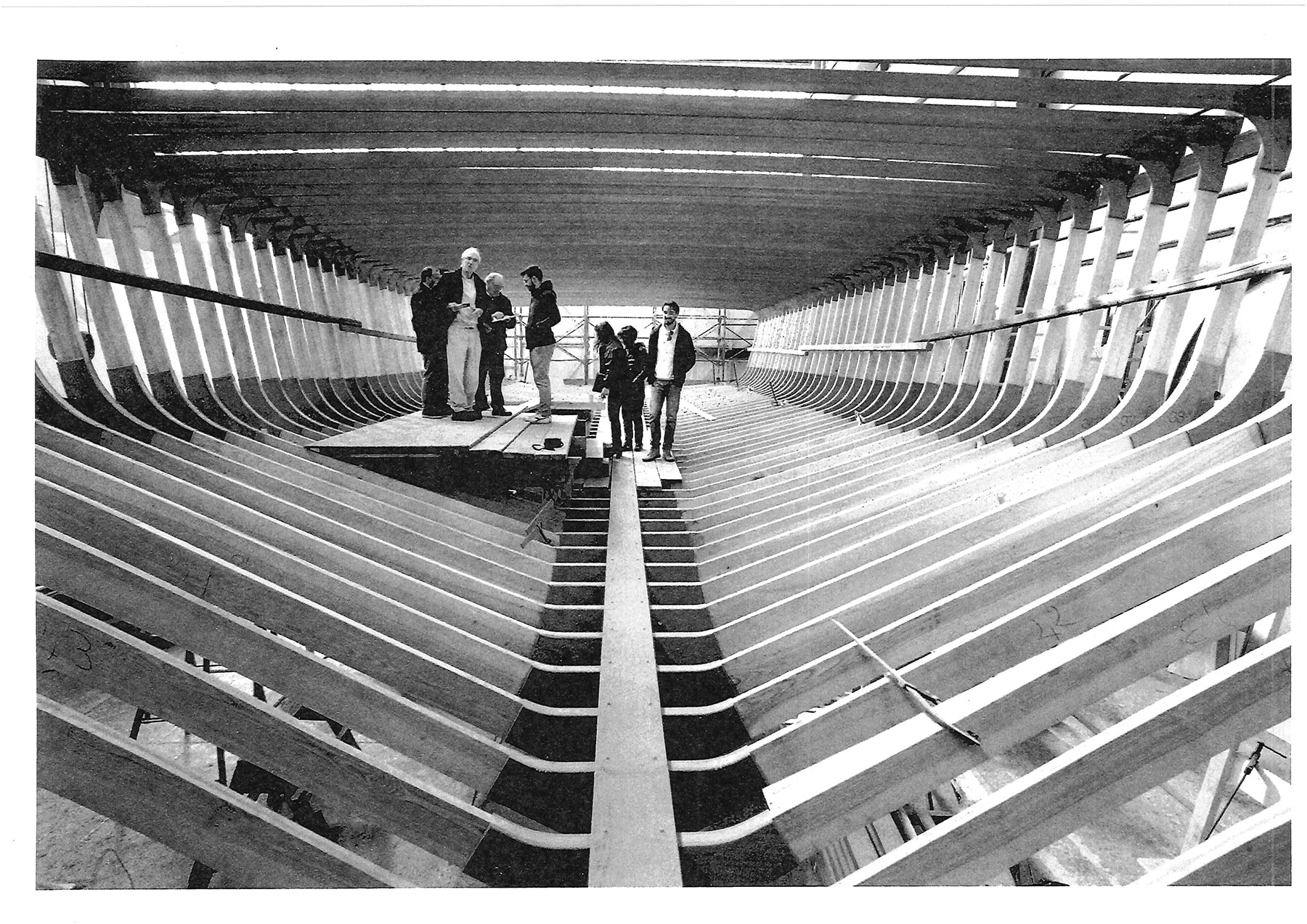

20210903160600452_0003

Siemens Energy’s hybrid propulsion system was fundamental in reducing emissions and careful attention was dedicated to eliminating vibration and sound pollution in the surrounding environment. Zattera has lithium-ion batteries and can navigate in silent mode under electric power only. The propulsion system and the craft’s hotel functions run on two180 kW variable RPM diesel generators and a 95 kWh battery pack connected to a 700 Volt continuous distribution system. Zattera has a traditional shaft drive run via twin 135kw permanent magnet motors that are directly connected to the shafts without the use of inverters to increase the efficiency of the system, and to further reduce sound and vibration produced by rotation. The diesel generators were purpose-developed by Mase Generators for Siemens Energy with Volvo Penta D4-300 motors using variable speed technology with permanent magnet alternators in order to minimize consumption and emissions. The generators are installed on a double anti-vibration pad, an unusual measure that was taken on this vessel and one that underlines its calling to reduce noise pollution. The same care and attention were dedicated to soundproofing the cases that the generators are mounted in and entire engine room. Even the underwater exhaust system is undergoing painstaking soundproofing testing. Solar panels will also be mounted on Zattera to create a zero impact and no cost renewable energy source. All of these systems were purpose created to allow Zattera significant autonomy both while navigating and during use in hotel mode.

The Castagnola shipyard has constructed the hull, the deck and the superstructure in solid wood that have been treated with silica-infused epoxy resin for optimal adherence, and marine grade plywood. The unusual hull shape called for a keel beam and a counter keel in cold-molded iroko wood that gets larger towards the bow. Given the particular shape of the bow all of the wood planking in that area is crafted using five different layers laid cross grain to each other. All frames are in solid ash while hull planks are in marine grade plywood. The deck is in lightweight marine grade okoune’, while the interior structural bulkheads are in wood lined with rubber and cork for insulation from vibration and sound.

24mt-zattera-2021-B-0003

The interior layout includes the owners and two guest cabins forward with the galley, crew area and the engine room aft. The styling is understated, clean and simple while overhead heights are generous throughout. The saloon in the lower deck is directly connected to the coach roof via symmetrical stairs. Natural light floods in from a large skylight placed at the center of the saloon. The floor is at the same height as the waterline, so you feel as if you’re walking on water while inside the boat.
